RK118DC 16-Channel 433MHz RF Remote Control Switch

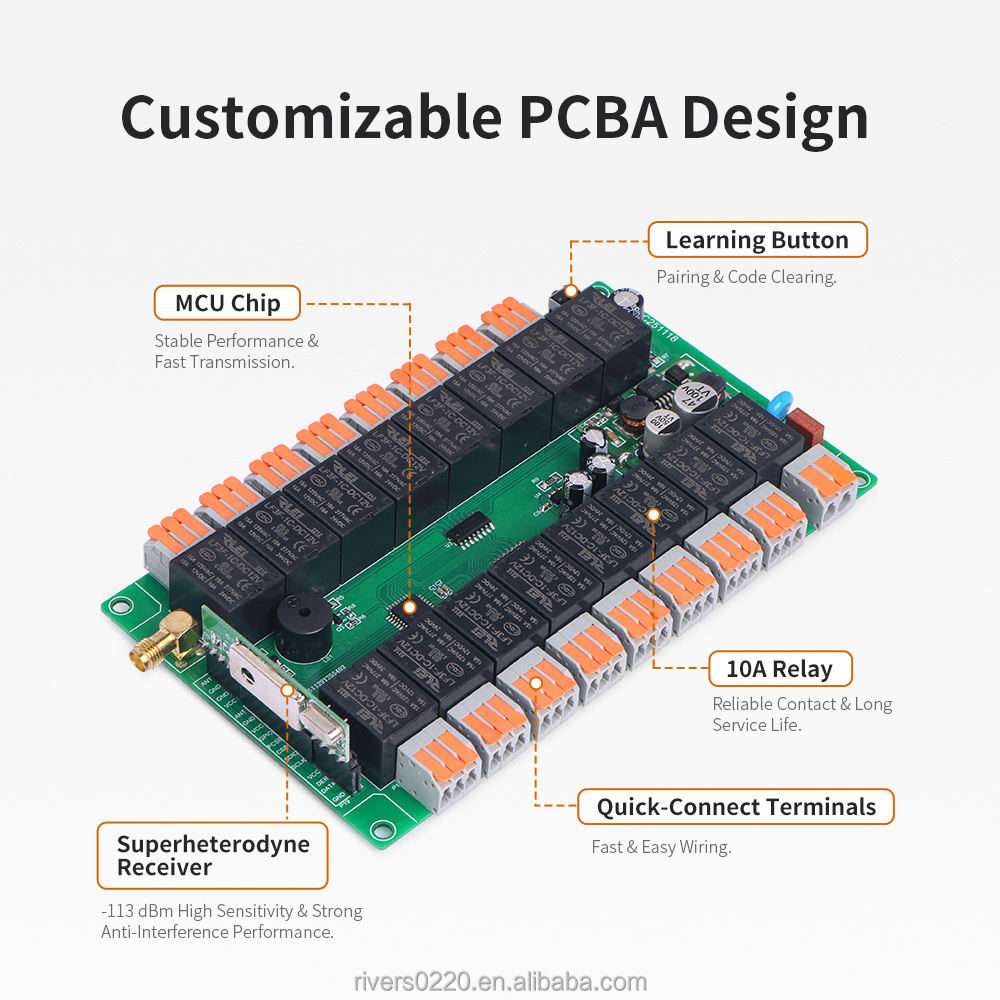

The RK118DC brings sixteen independently controlled relay channels into one 433MHz wireless control system. Its 18-button handheld transmitter gives operators a dedicated control for each channel plus All ON and All OFF, making it useful when several circuits need to be switched from one position.

Independent control for multi-circuit installations

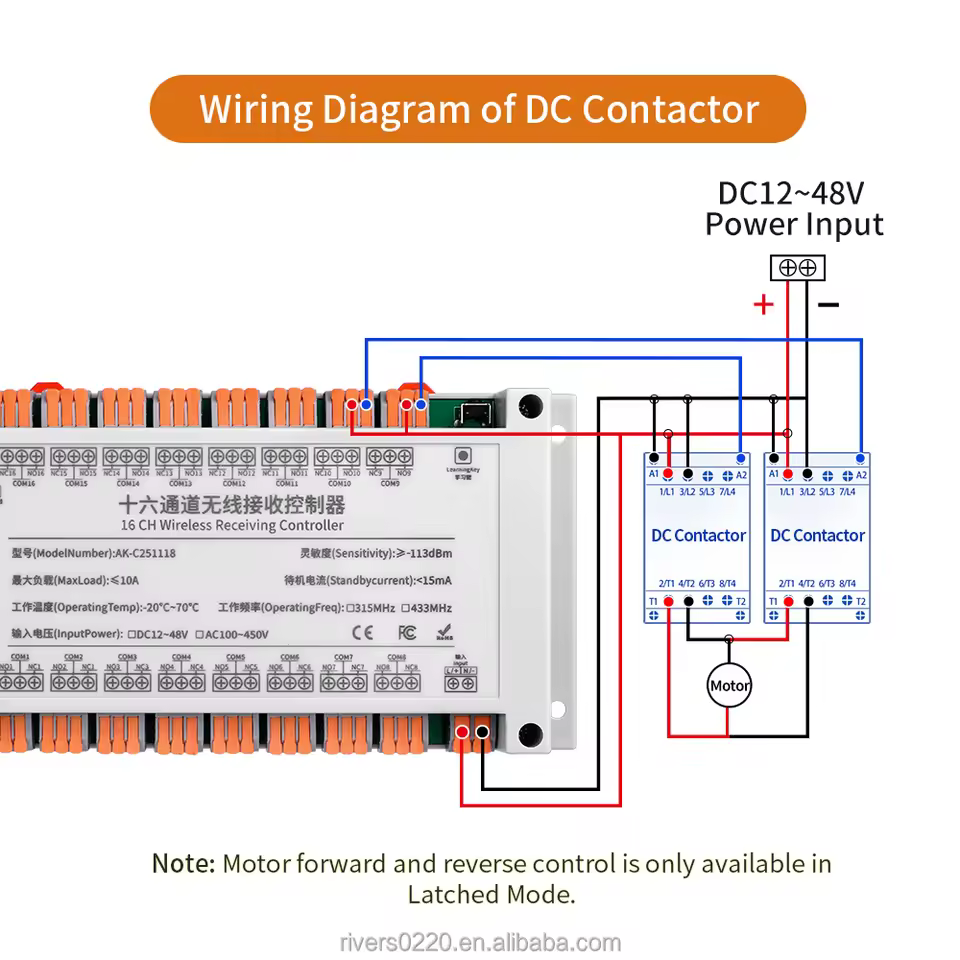

Use the receiver to organize separate switched outputs for lighting groups, equipment functions, or other compatible control circuits. The learning-code pairing design supports straightforward transmitter setup. Confirm the required relay behavior, load rating, and wiring arrangement for your application before installation.

Choose the supply version to match the site

• Black receiver: DC 12–48V supply option.

• White receiver: AC 100–450V supply option.

• 433MHz wireless operation with a supplier-stated control distance of up to 300m; installed range depends on obstacles, interference, antenna placement, and site conditions.

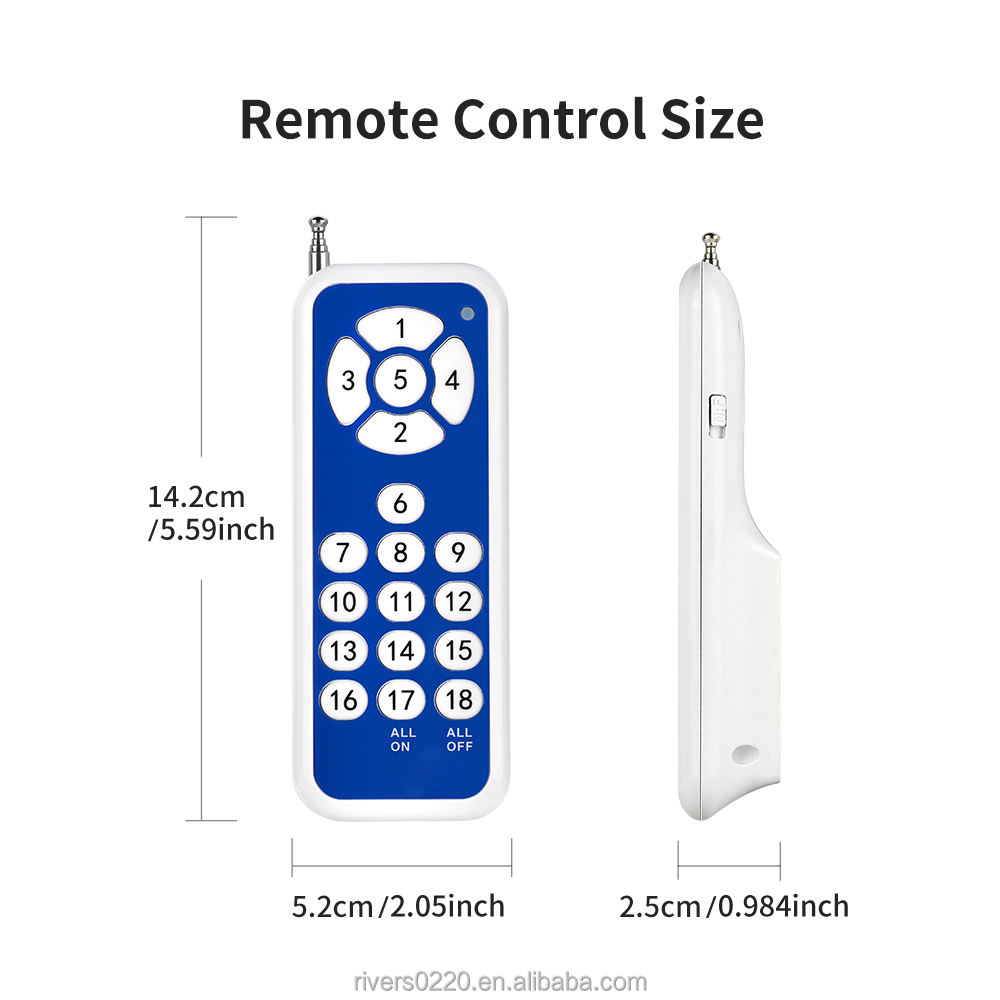

• AAA-powered handheld transmitter with 18 buttons for 16 individual channels and group All ON/OFF control.

Specify the right configuration

Share your supply voltage, connected load, required switching mode, channel assignment, and operating distance when requesting a quotation. We can help confirm whether the RK118DC configuration fits the intended control task and identify any installation details that need checking.
